10632 Alfamacchine U200P Pneumatic Underpinner EX DEMO

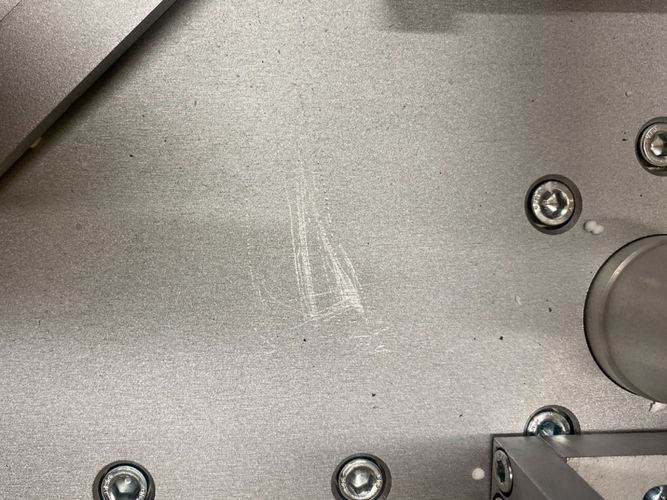

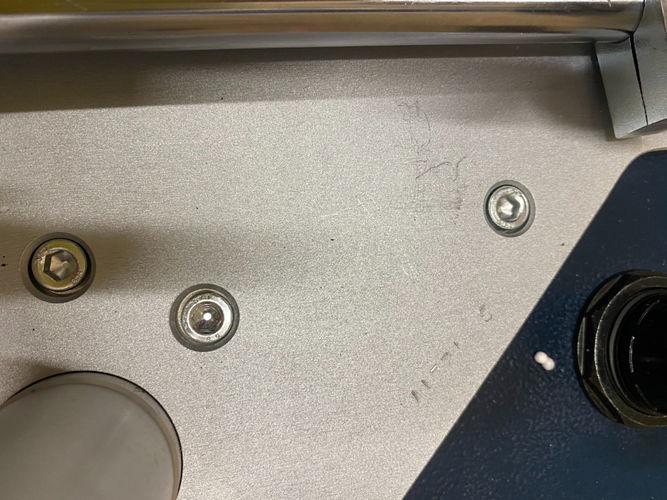

Ex demo machine with some small scratches and scuffs - in full working order

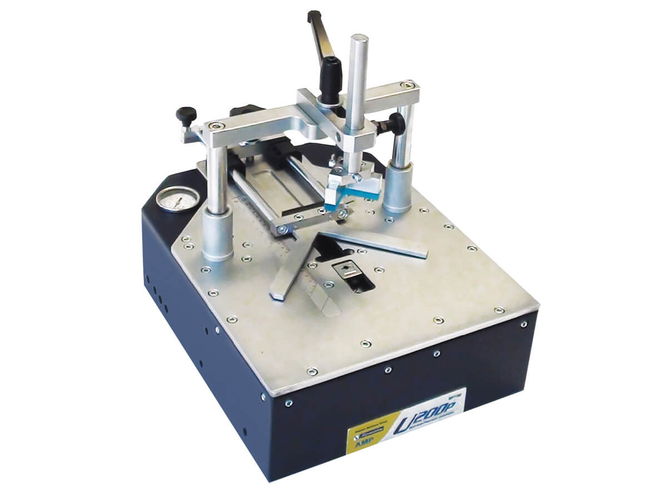

Compact underpinner offering the power of pneumatic operation. Reduces operator fatigue and produces consistent results.

Setup: Spring loaded pull pin mechanism - quickly adjust the top clamp to the height of the moulding

Clamping: Double piston top clamping mechanism distributes pressure evenly.

Operation: Pneumatic foot pedal activates clamping and V Nail insertion. After releasing the foot pedal the operator pushes the moulding back to the second insertion position and repeats the process.

More Info

• Inserts Alfamacchine Power Twist V Nails
• Top L clamps have interchangeable polymer pads
• Fixed back fences
• Can be configured for back or front working
• V Nail blocks are changed with a hex key. 7mm, 10mm & 12mm supplied, 5mm & 15mm are optional extras
• Supplied with full boxes of 7mm, 10mm & 12mm V Nail

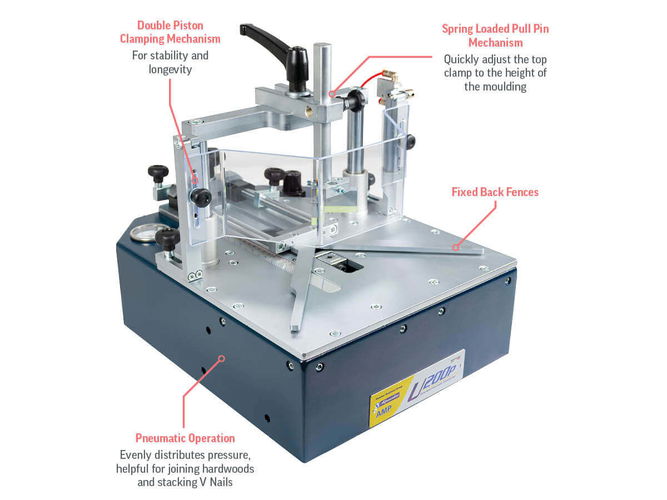

• Download the annotated diagram

12 month manufacturer’s warranty as standard. Always use genuine Power Twist V Nails for Alfamacchine – alternatives may damage your machine and invalidate the warranty.

Specification

Operation: Pneumatic

V Nail insertion positons: 2 fixed positions, unlimited in between

Max distance between V Nails: 180mm

Max moulding height: 80mm

Stand: Optional Extra
