2903 Fletcher Terry 3100 Sheet Material Cutter 1600mm

Cuts sheet materials including glass, acrylic, MDF, mountboard and foam centre board

Acrylic / Styrene 6mm
Glass 6mm
MDF / Hardboard 3mm
Mountboard 12mm
Foam Centre Board 12mm
Correx 12mm
Aluminium 1mm (cutting head sold separately)

Key features:

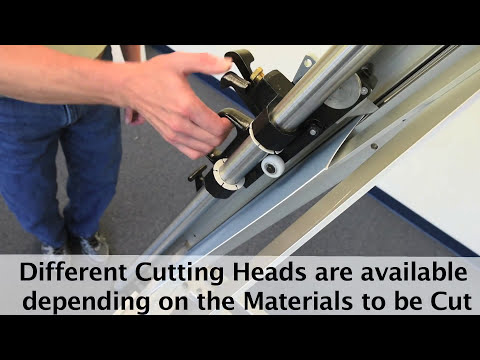

- Interchangeable cutting heads for acrylic, glass, MDF and boards.

- Unique breaker feature – snap acrylic without taking it to a bench and get a clean break on glass every time. Watch our video to find out more.

- Cutting head runs on high tensile strength steel tube, chrome plated and polished for a smooth gliding cutting action.

- Patented lever clamping system secures materials in place to prevent buckling and shifting during cutting process.

- Flip up measuring stop for accurate repeat cutting.

Interchangeable cutting heads for different materials:

Acrylic: Scores acrylic sheets up to 6mm thick. Run the breaker down the score line to complete the cut without taking the sheet to the bench. See 2748 for acrylic scoring blades.

Glass: Fit tungsten (2755) or steel wheel (2780) to cut glass up to 6mm thick. Apply the breaker at the top of the score line for a clean break every time.

MDF / Hardboard: Razor sharp steel wheels cut the back and front of the board at the same time, giving a clean cut on hardboard and MDF up to 3mm thick. Wheels are replaceable. See 2942 for hardboard cutting blades.

Boards: A Fletcher utility blade cuts mountboard and foam centre board up to 12mm thick. See 2941 for mountboard cutting blades.

Aluminium: Cutting head with wheels to cut sheet aluminium up to 1 mm. Sold separately: FLE12224

More info:

- Scales in metric and imperial, with flip stop for accurate repeat cutting

- Maximum sheet size: 1600mm

- Mounts to the wall, to save space

Download the annotated diagram

Delivery and installation:

Delivered in a large L-shaped box. Install by fixing to a flat, solid wall. If that’s not available, attach a sheet of thick MDF or Plywood to the wall then fix the cutter to that.

Fletcher Part No: #04-715
