3150 T Screw + Top Hook kit for Wood frames 1 bag

A popular way to hang wood or polymer frames and secure with a T Screw

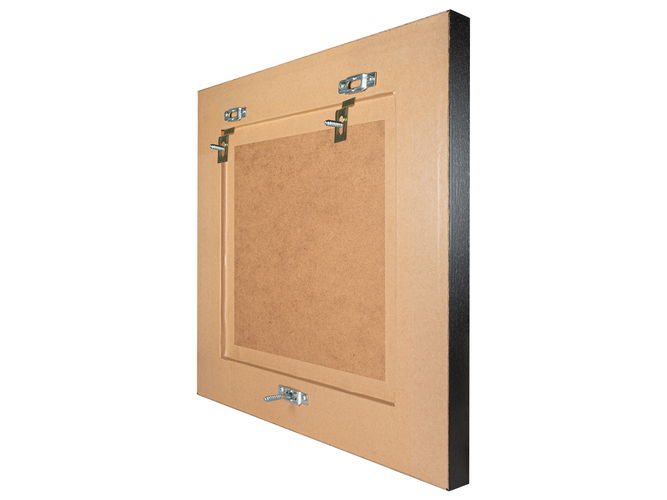

Two Slotted Plates are screwed to the top edge and a third one at the centre of the bottom edge. The two Top Hook plates are screwed to the wall in matching positions. Post-its can help when marking the wall. The Slotted Plates let the frame hang on the Top Hook plates.

To secure the frame, mark the wall position of the bottom T Screw and insert it. To speed that, the T Screw Companion clips into the bottom slotted plate and a press on the frame leaves a dimple on the wall.

T Screws are turned to lock and unlock with a T Screw spanner. This slips behind the frame and onto the flats of the T Screw.

The Top Hook and T Screw system is completely hidden yet makes the frame safe and secure on the wall. No ugly picture plates sticking out from either side.

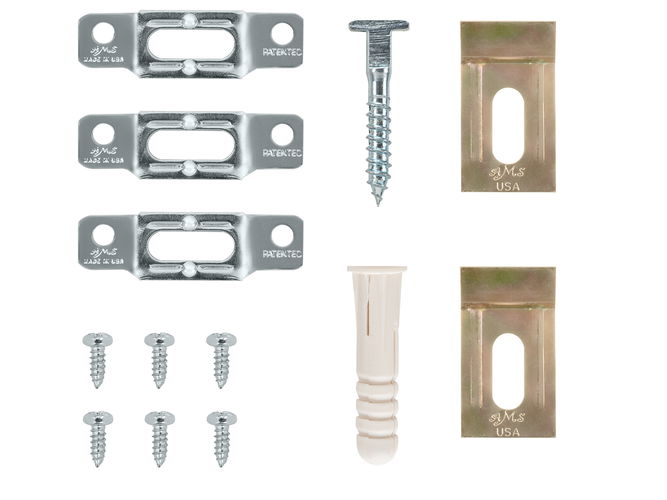

Bag contains:

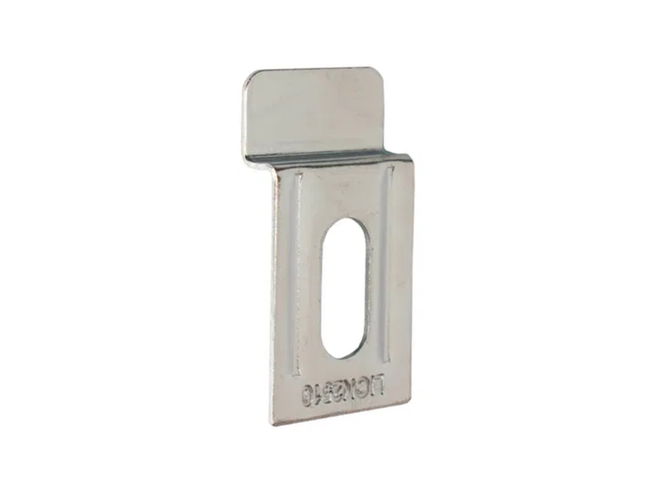

Top Hook plates 2510 x 2
Slotted plates 2008 x 3
Small screws x 6

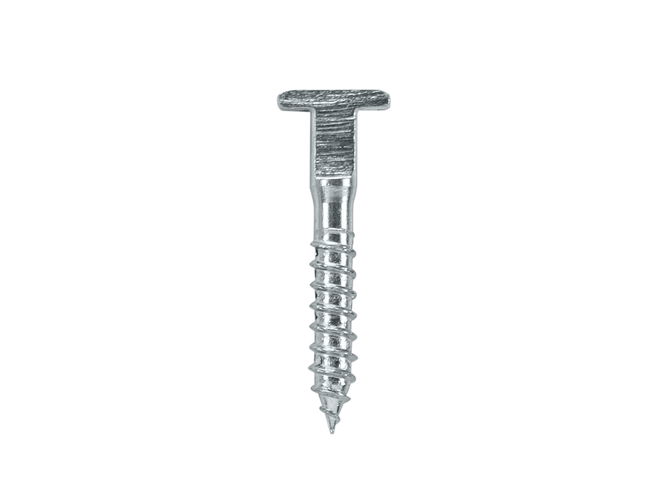

T Screw 2006 & plug x 1

See also:

3150B Top Hook + T Screw kits for Wood frames  10 bags

3150C Top Hook + T Screw kits for Wood frames  100 bags

10306 T Screw Companion to help mark T Screw positions

889 T Screw Spanner
