Hang a Metal Panel

Products featured



There’s a couple of simple options for getting art and photography on panels ready to hang on a wall:

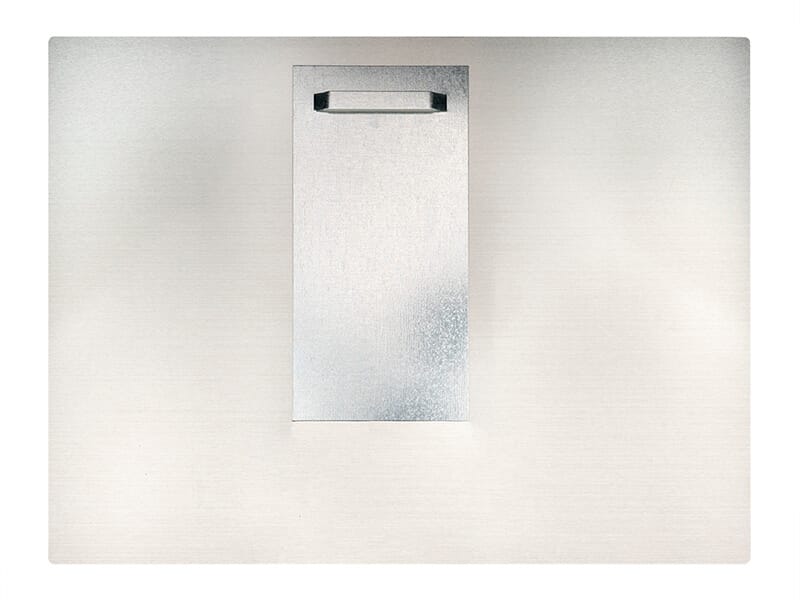

Panel Hanging Plates are quick, simple and inexpensive. They allow the panel to hang on almost any hook, nail or screw. Watch our video to see how to apply them.

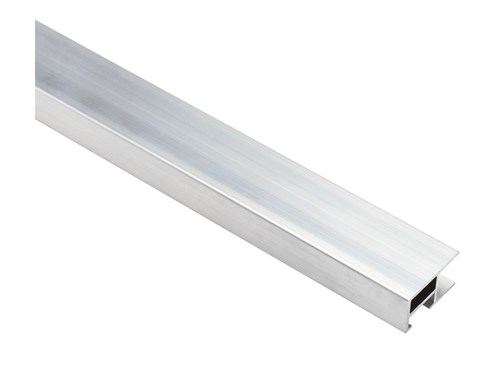

Aluminium Sub Frame profile is cut and joined to make a frame.

This is bonded to the back of a printed panel and hangers are fitted to the frame. This method gives the panel more rigidity; it is spaced away from the wall and hangs on normal picture hooks. Watch our videos to find out more.



How to fit a sub frame to an aluminium panel

How to fit a SUB15 pre-taped aluminium sub frame. For smaller panels and lighter substrates.

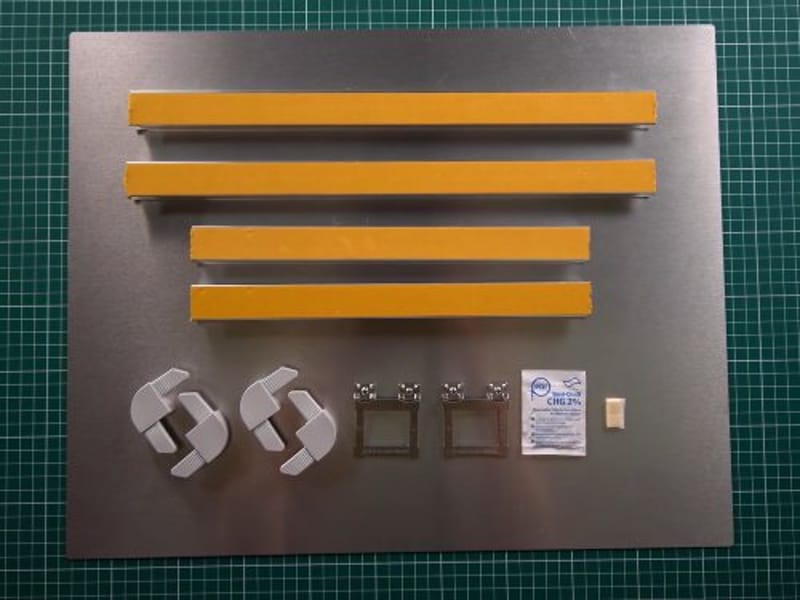

  • Step one

    You'll need a Push-in Corner Kit and a SUB15 Pre-taped Sub Frame mitred to size on our Chop Service.

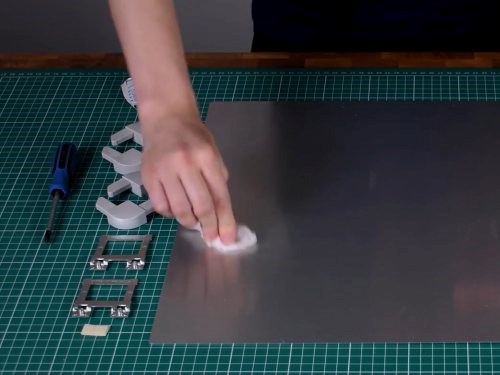

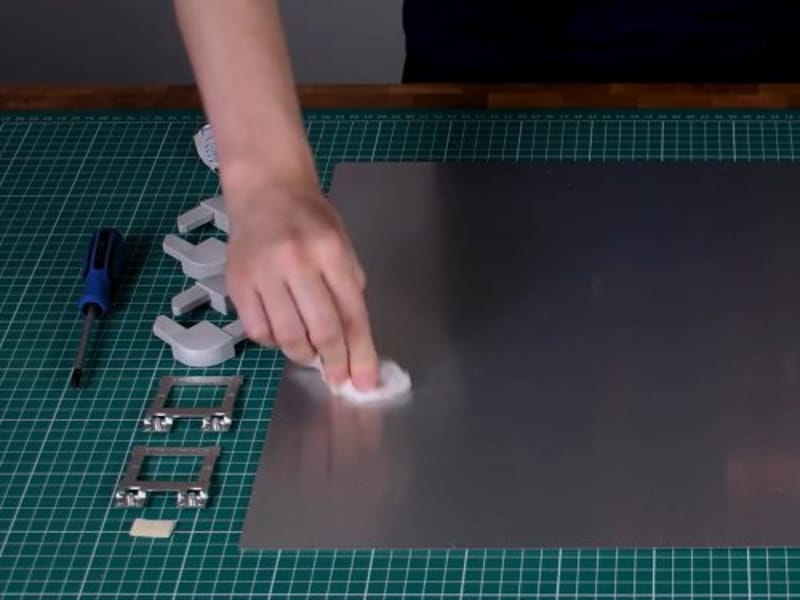

  • Step two

    Clean the back of the panel using isopropyl alcohol and allow to dry.

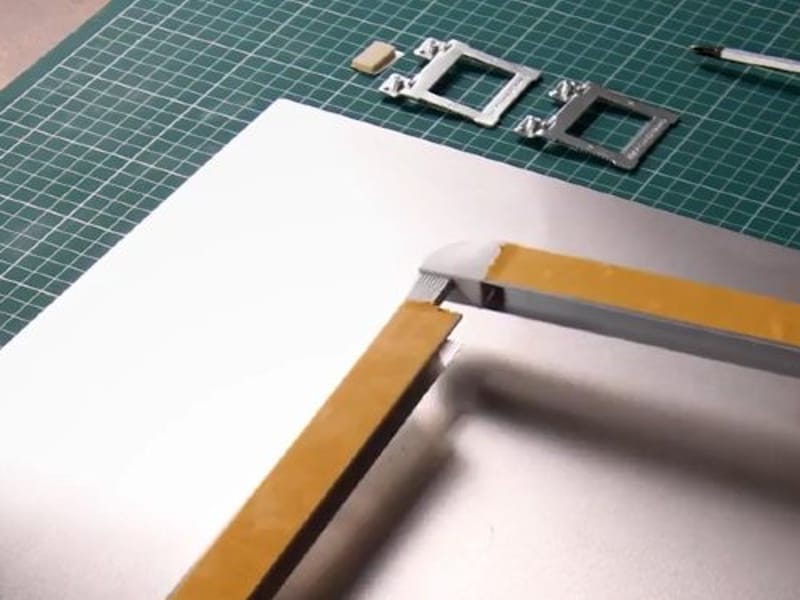

  • Step three

    Join the frame using SUB15 Moulded Corners.

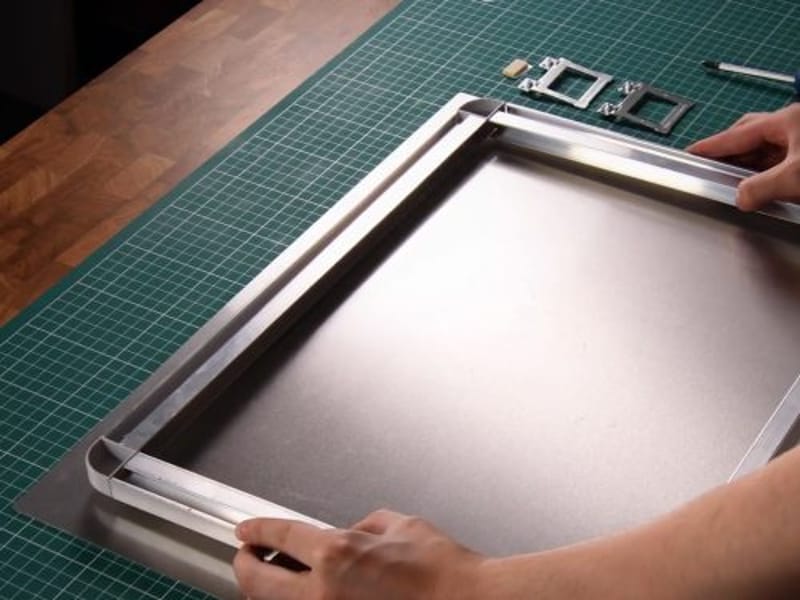

  • Step four

    Mark the position of the frame, peel off the release paper and press it down firmly.

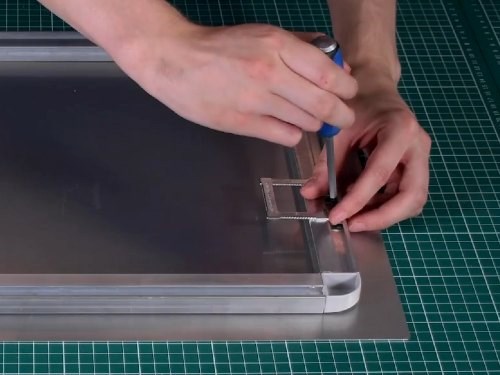

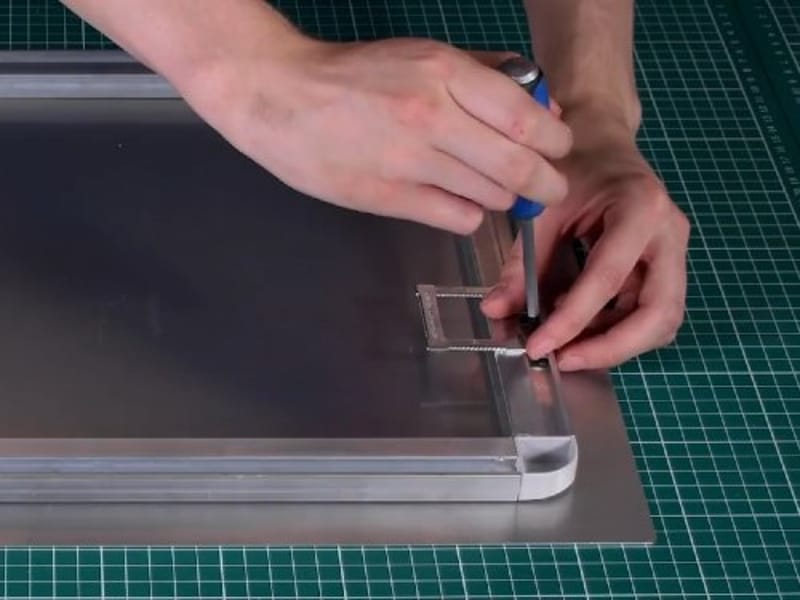

  • Step five

    Slot CWH3 Hangers into the sides of the frame and tighten. Apply bumpers.

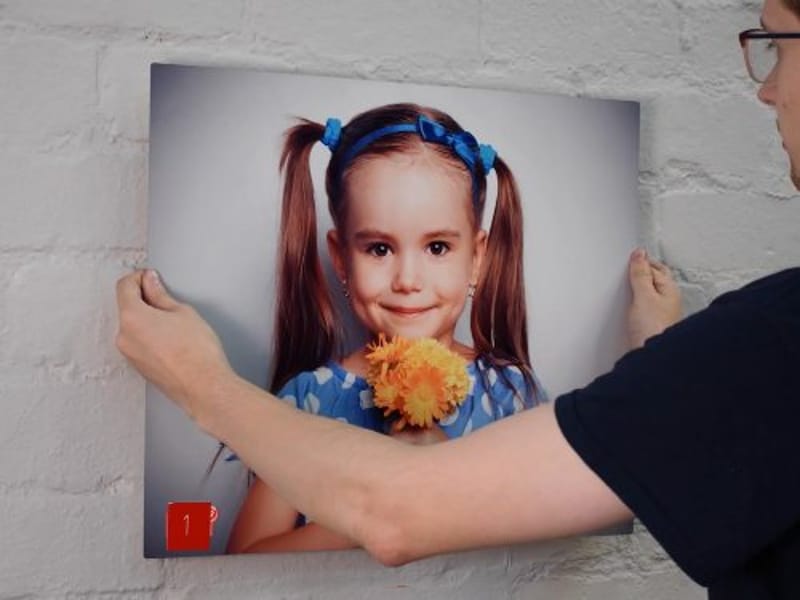

  • Step six

    Leave to cure for 24 hours before hanging.

How to calculate the size of a sub frame

Allow for a border between the sub frame and the edge of the panel. On average this will be 25mm but can be less on a smaller panel. You will also need to allow for the width of the Moulded Push-in Corners at each end. To work out the size of pieces you'll need to cut/order on Chop Service:

Panel width mm - (border mm x 2) - (27mm x 2) = sub frame width in mm

Panel height mm - (border mm x 2) - (27mm x 2) = sub frame height in mm

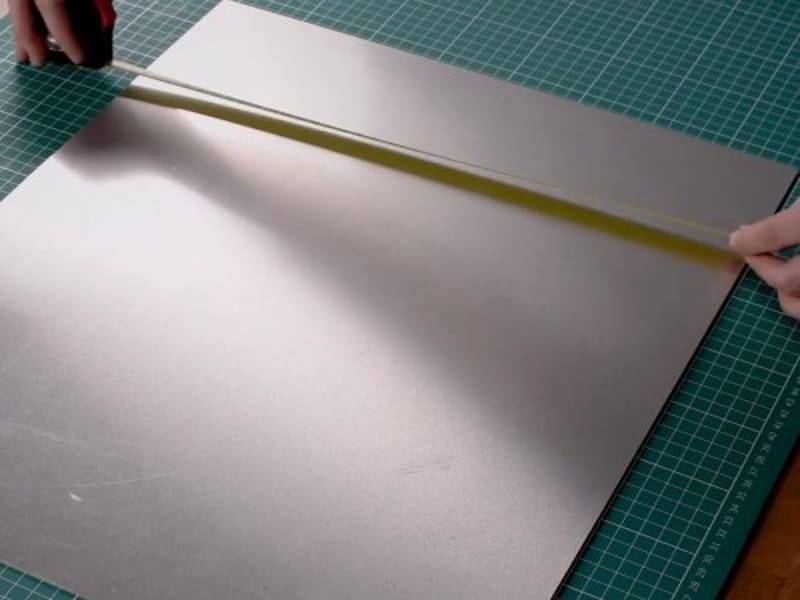

  • Step one

    Measure the panel width and height.

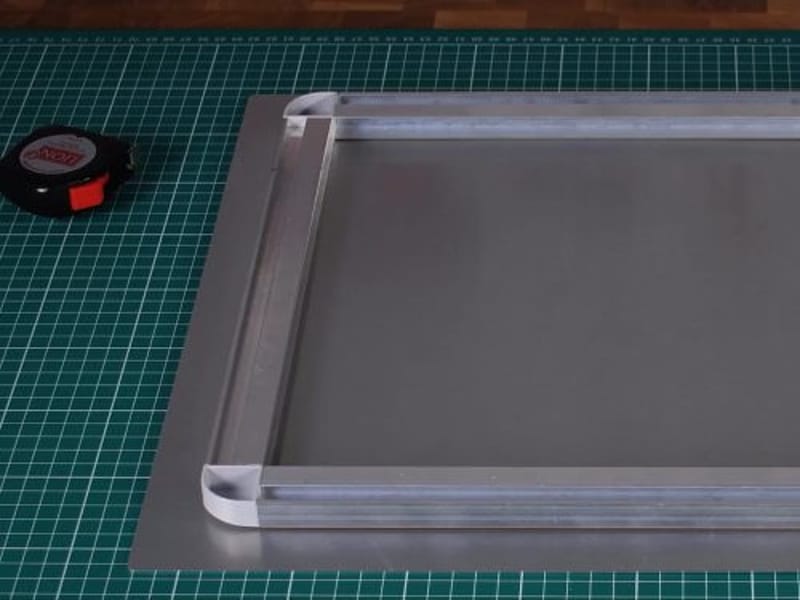

  • Step two

    To work out the size of the sub frame, take the measurements and...

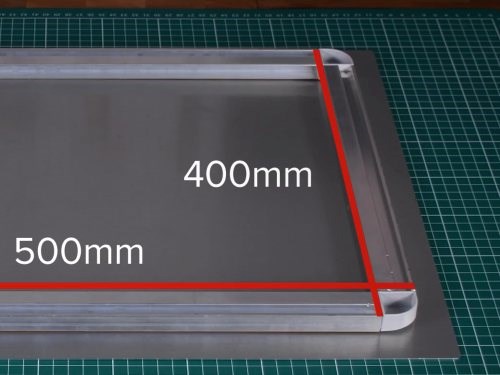

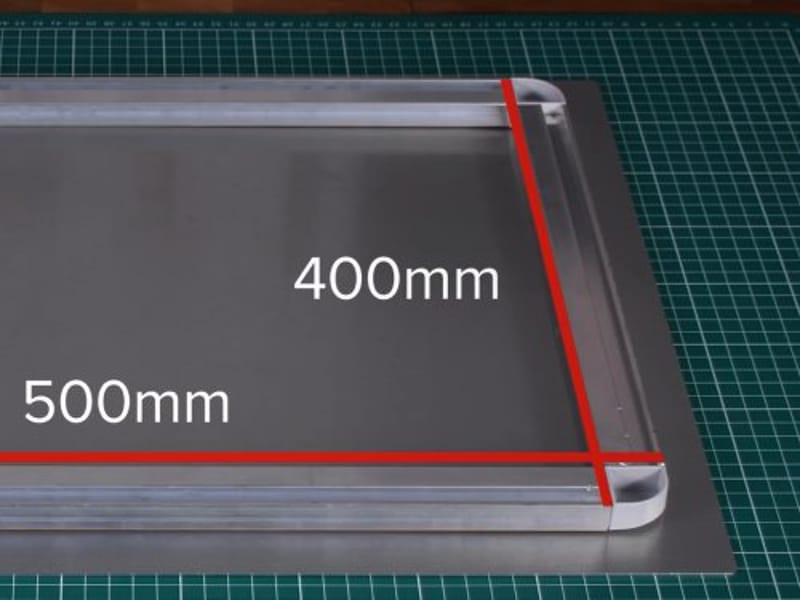

  • Step three

    Subtract 2 x 25mm for the border (2 x 15mm for smaller panels).

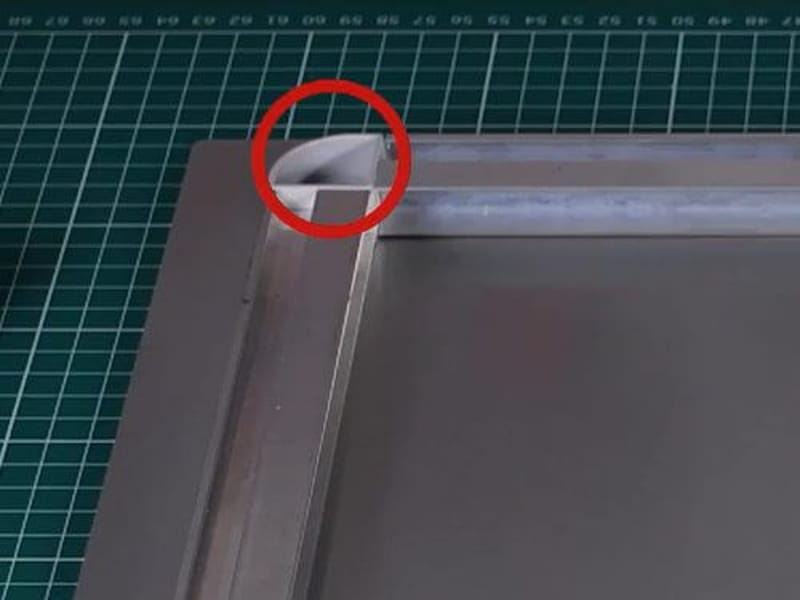

  • Step four

    Subtract 27mm to allow for each corner (54mm in total from each measurement).

How to fix a flat panel stand to an aluminium panel

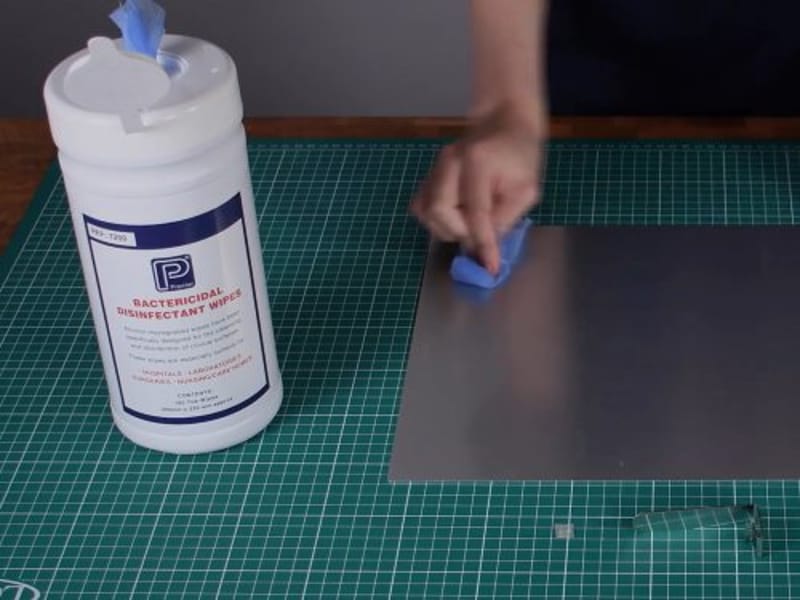

  • Step one

    Clean the back of the panel using isopropyl alcohol and allow to dry.

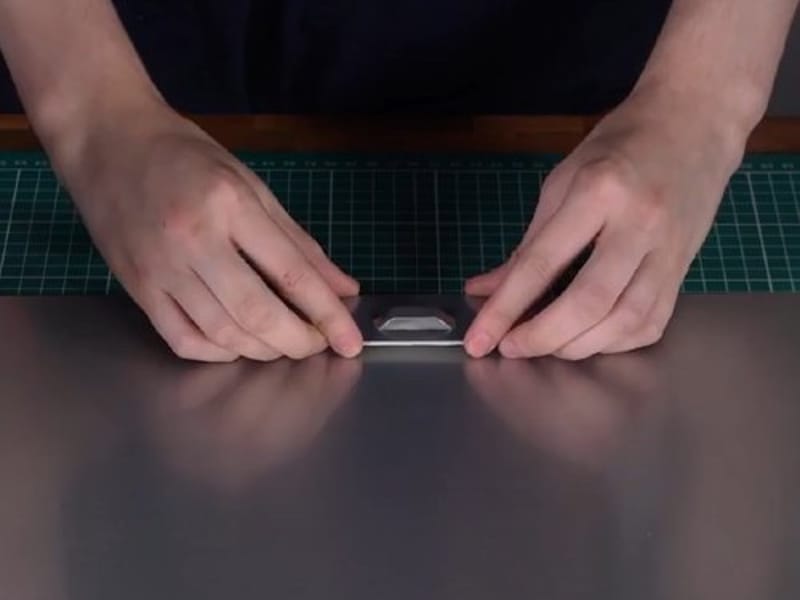

  • Step two

    Mark a position in the bottom centre of the panel and press the plate firmly in place.

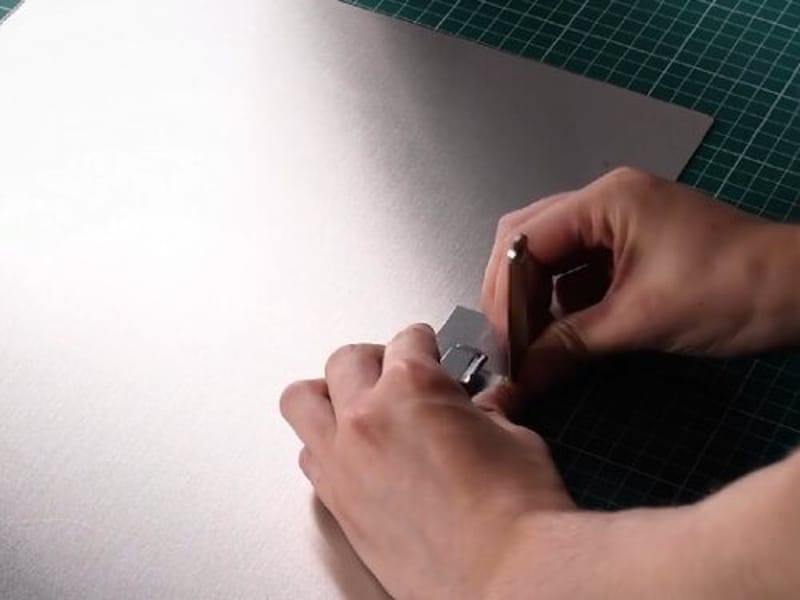

  • Step three

    Stick the protective bumper onto the stand leg and fit it into the slot.

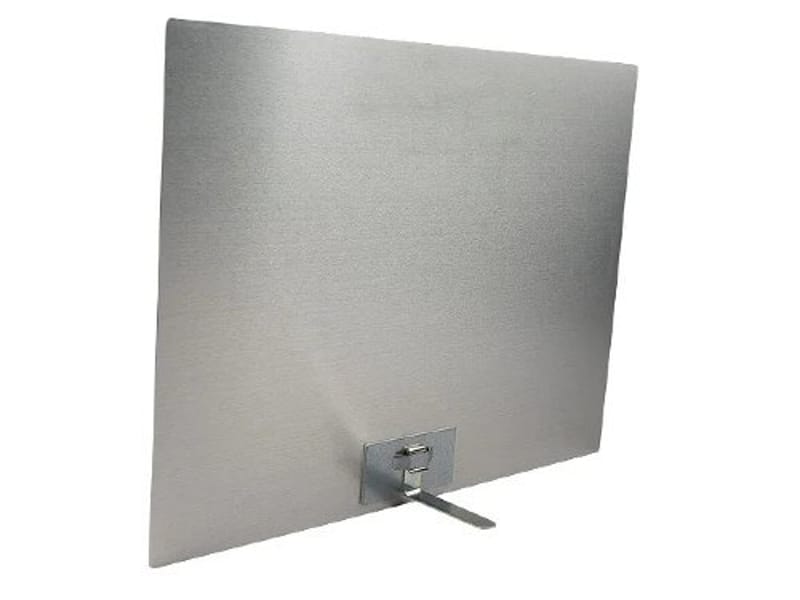

  • Step four

    Your panel is ready to stand.
