Frame Sports Memorabilia

Step one

Bond a piece of mountboard to a piece of 5mm adhesive foam board, sized to suit.

Step two

Use a Brayer Roller to get a good bond.

Step three

Mark the location where you want to fix the mounting clip. Usually this is in the centre.

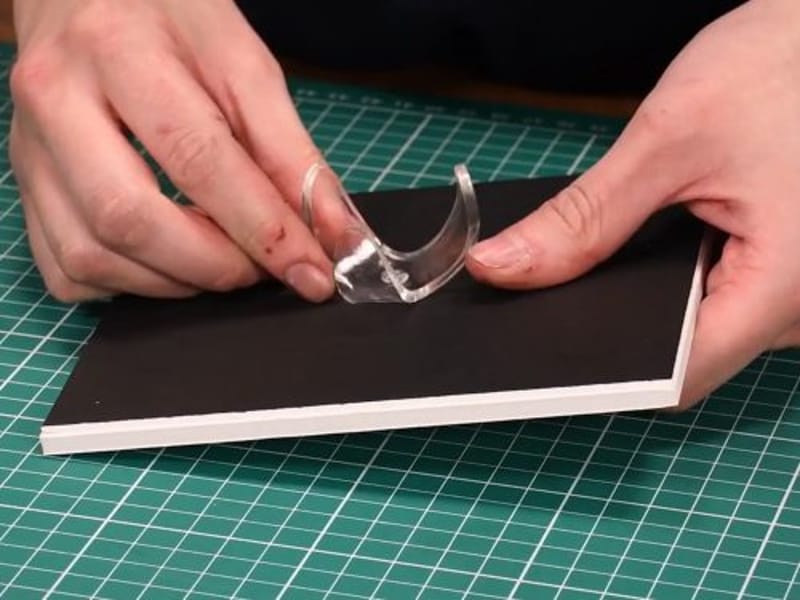

Step four

Drill or pierce a 3mm hole and insert the countersunk bolt.

Step five

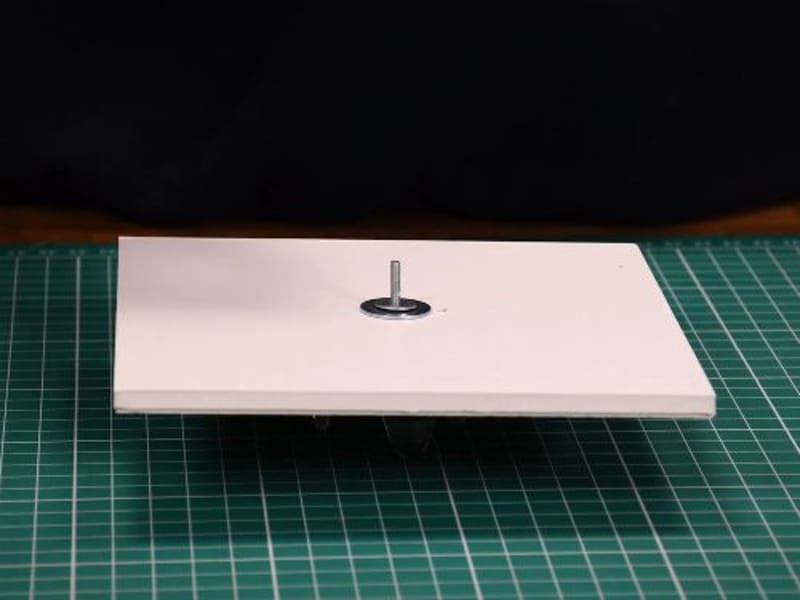

Place the washers on the back to spread the load. Bolt in place and remove any excess thread.

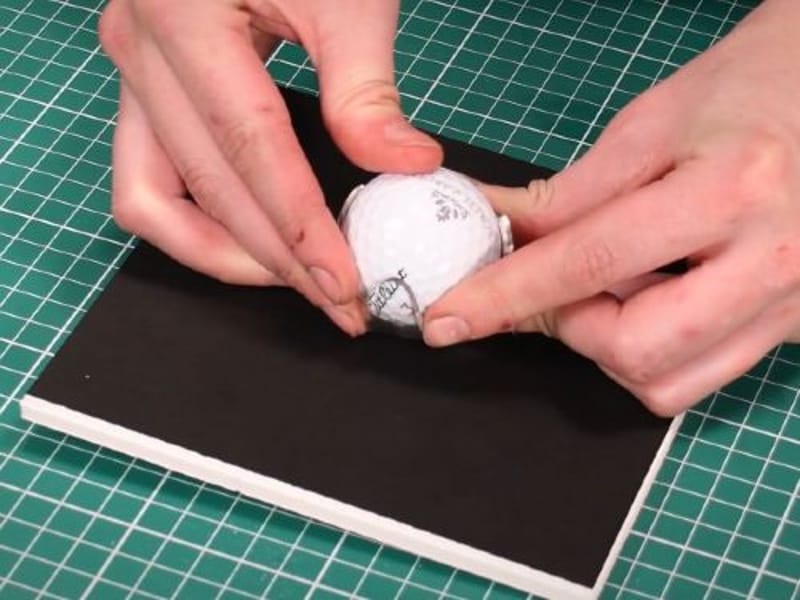

Step six

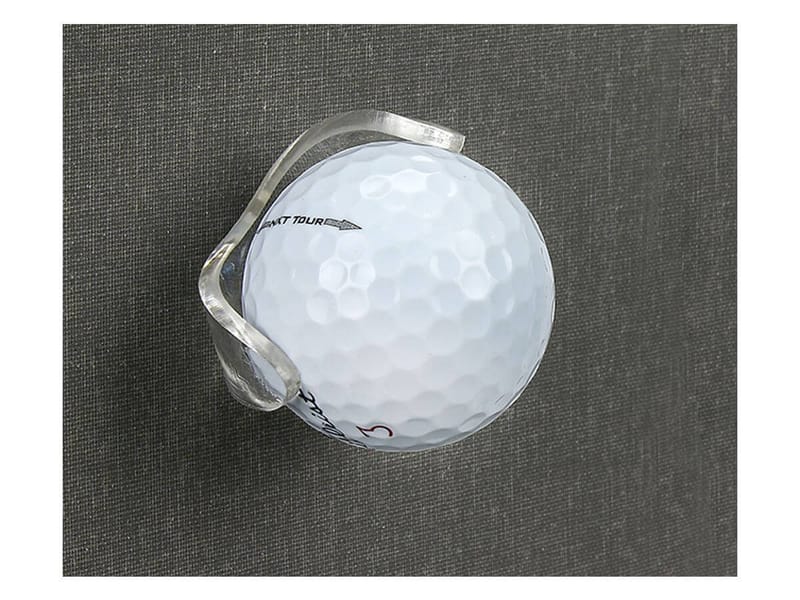

To fit the ball place it into the bottom two arms, flex the top arm slightly to make adjustments.

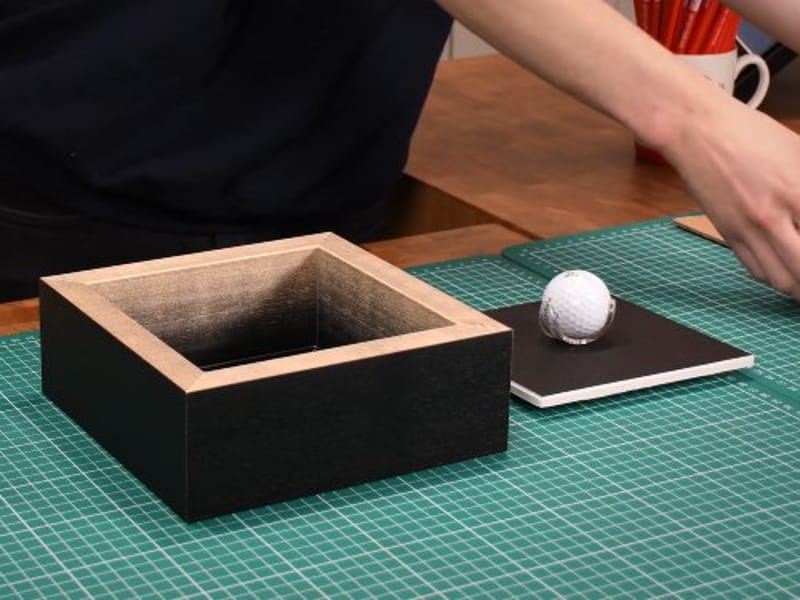

Step seven

Make a deep rebate frame with matching spacers and assemble.

Step one

Cut pieces of mountboard and self-adhesive foam board, sized to suit the frame.

Step two

Allow for an appropriate border between the cricket bat and edge of the boards. 50mm for example.

Step three

Bond the self-adhesive foam board to the mountboard to add rigidity. Brayer roll to finish.

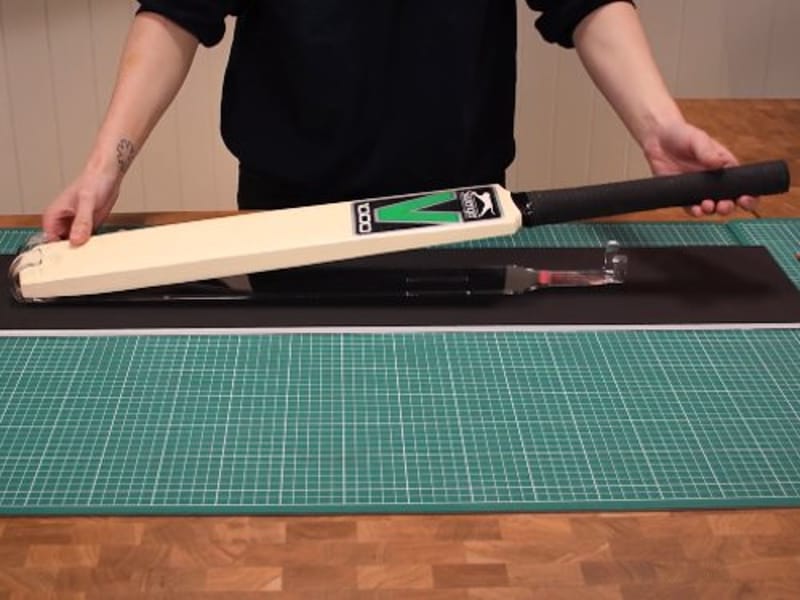

Step four

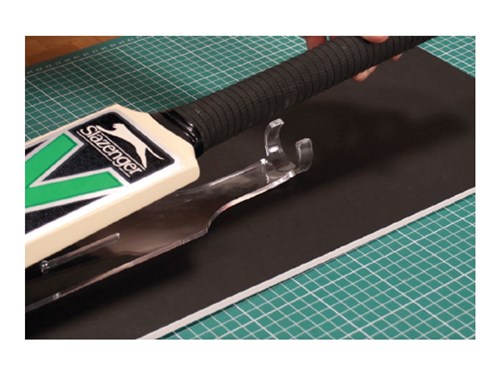

Centre the clip on the mountboard and lay the bat into the toe holder clips without pushing the handle in the retaining arms.

Step five

Check positioning. Once happy, carefully remove the bat from the clips and mark the location of the lower screw hole.

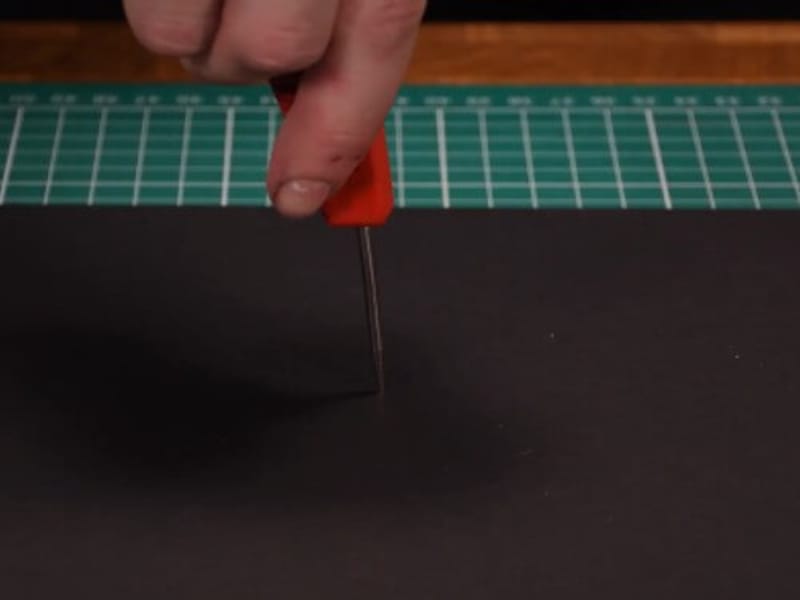

Step six

Drill or pierce 3mm two holes and attach the clips with the bolts provided.

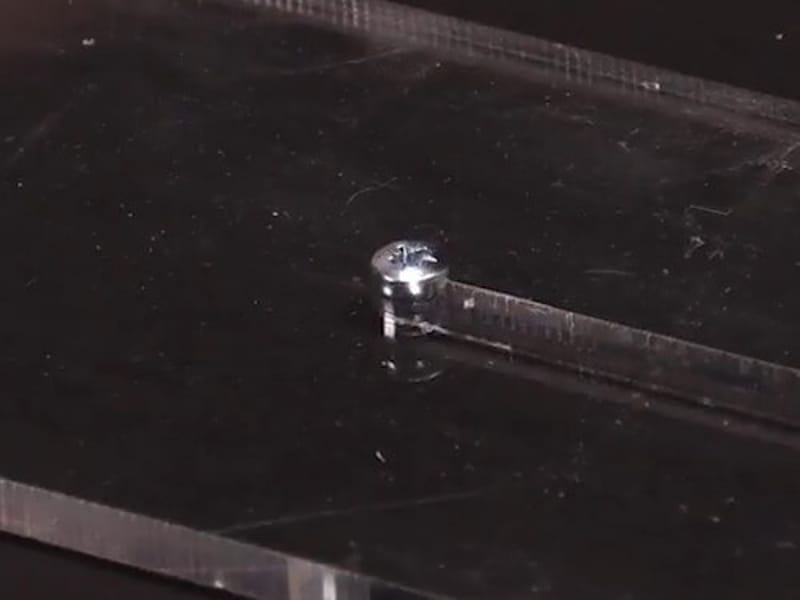

Step seven

Use the countersunk bolt for the lower hole and the pan head bolt for the upper hole.

Step eight

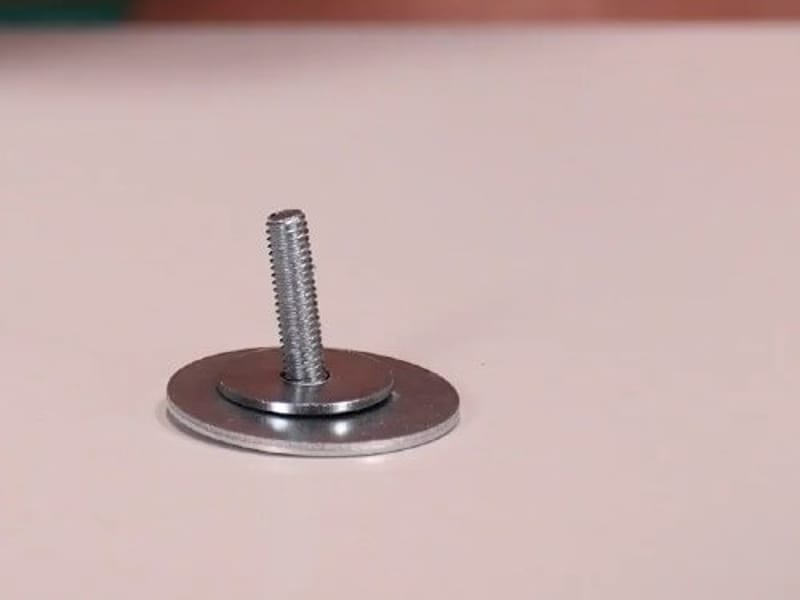

Place washers at the back of the foam board and secure with the nuts. Cut off excess thread.

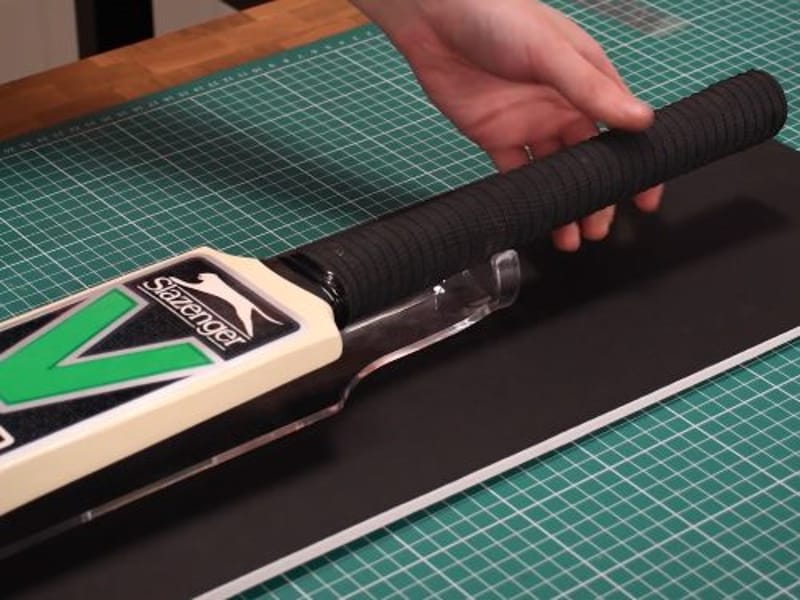

Step nine

Place the toe of the bat into the toe holder clip and the handle of the bat into the retaining arms.

Step ten

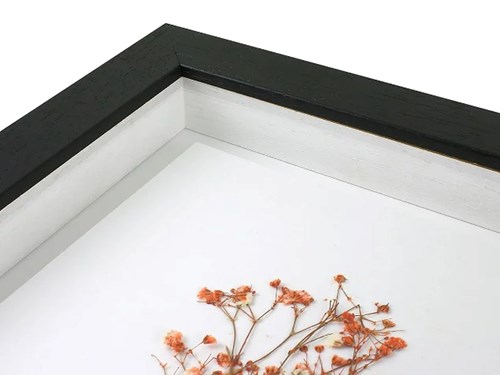

Make a deep rebate frame with matching spacer and assemble.
