Frame a Metal Panel

Products featured



Adding an aluminium frame to a metal panel such as ChromaLuxe gives it a finished look, perfect for home interiors.

Aluminium frames are easy to assemble with just a screwdriver.

You can order them mitre cut to size on our Chop Service. Watch our video to see how it works.

See also:

Make an aluminium frame

Start using Chop Service

How to frame a metal panel

  • Step one

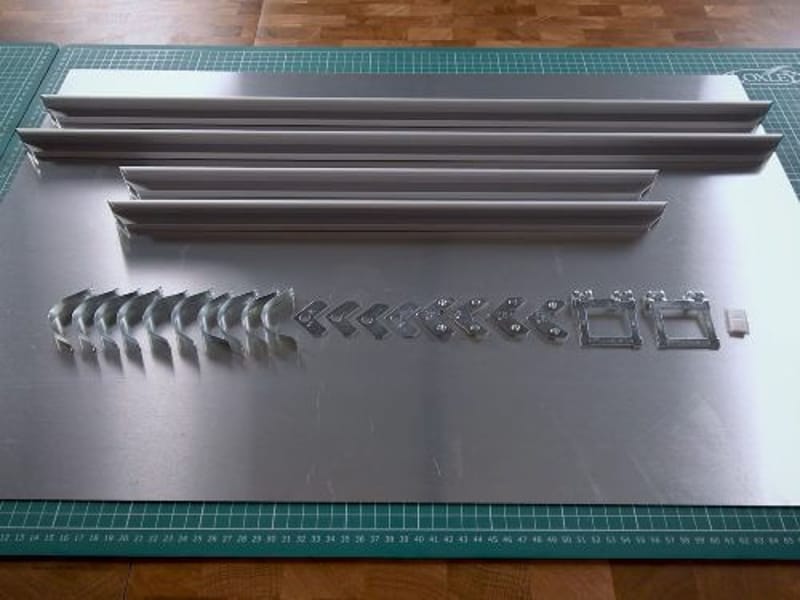

    You'll need three components; an aluminium frame mitred to size on our Chop Service, Aluminium Frame Hardware, and a metal panel.

  • Step two

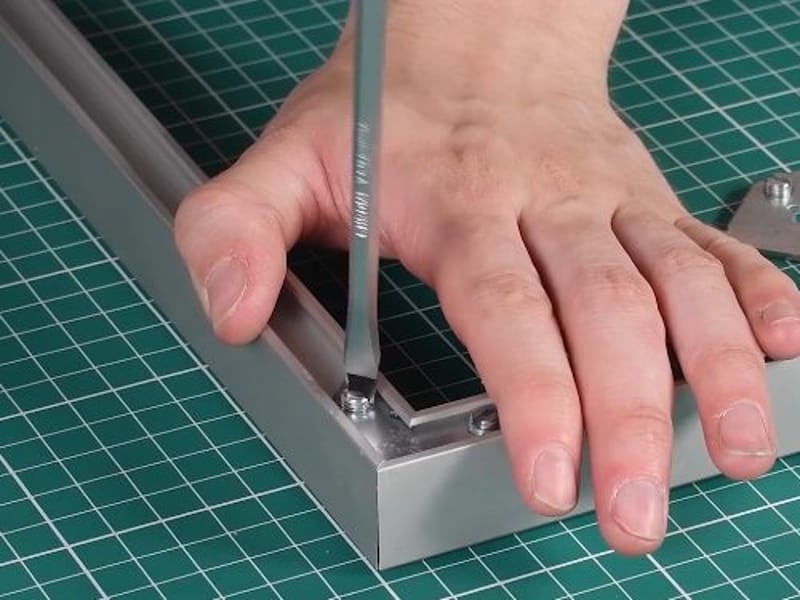

    Slot in and tighten the screwed and flat plates into the corners to join three sides of the frame. Leave the top side open for now.

  • Step three

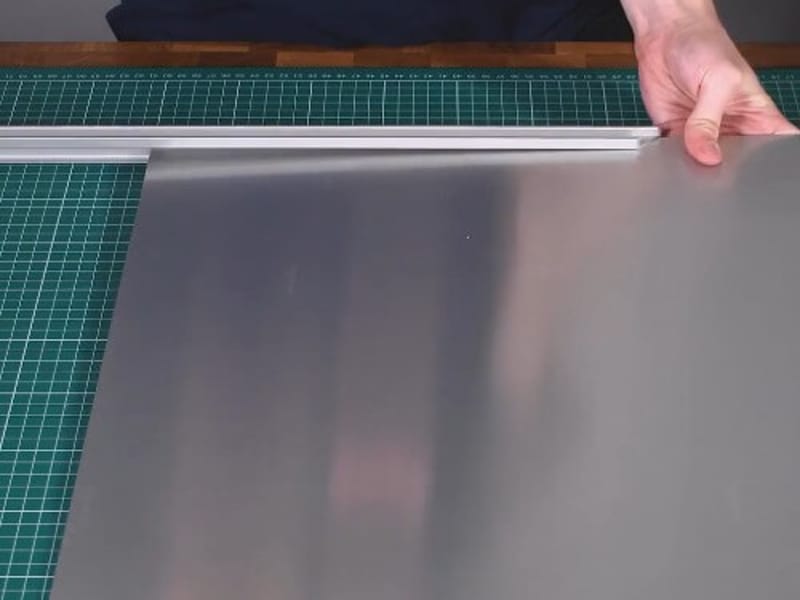

    Slide in the printed metal panel.

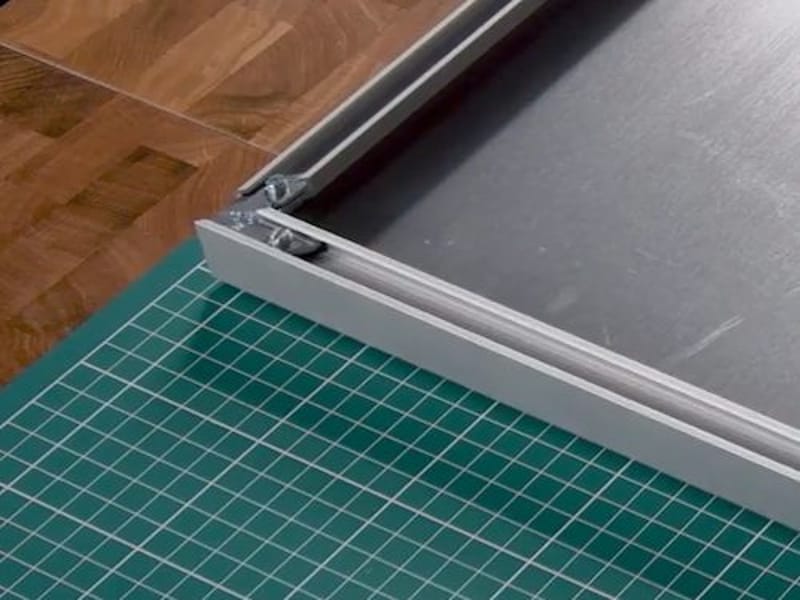

  • Step four

    Slot in the remaining corner plates to join the fourth side of the frame.

  • Step five

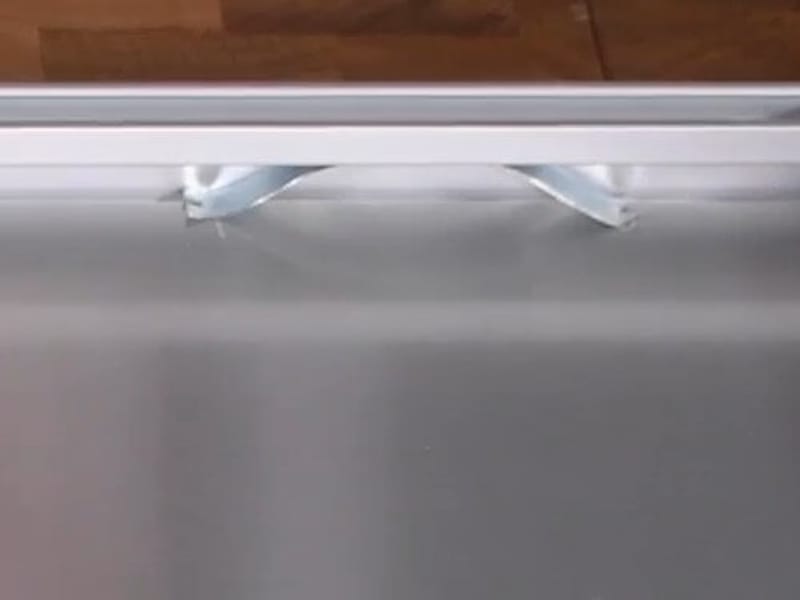

    Slide the bow springs under the frame rebate on all four sides. Typically use 8 on smaller frames and 10 or more on larger frames.

  • Step six

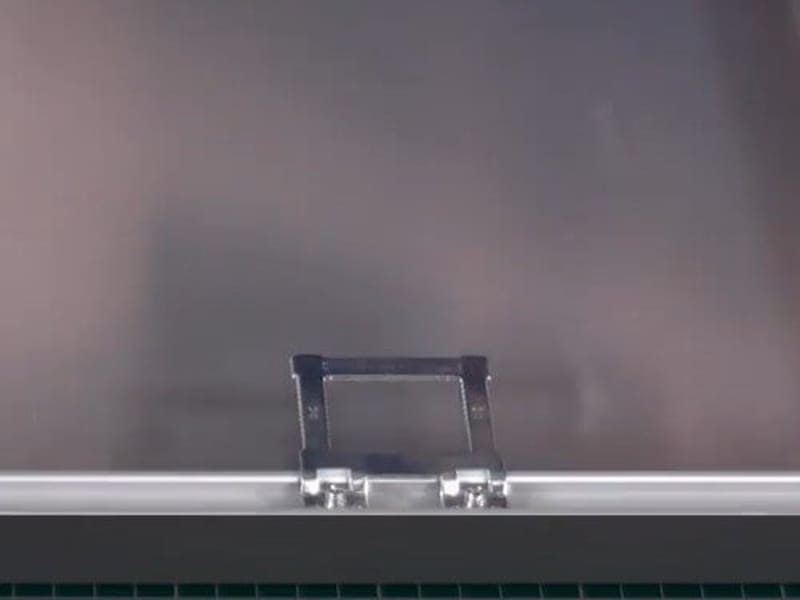

    Slot the CWH3 Sawtooth Hangers in approximately 1/3 from the top of the frame and screw to tighten.

  • Step seven

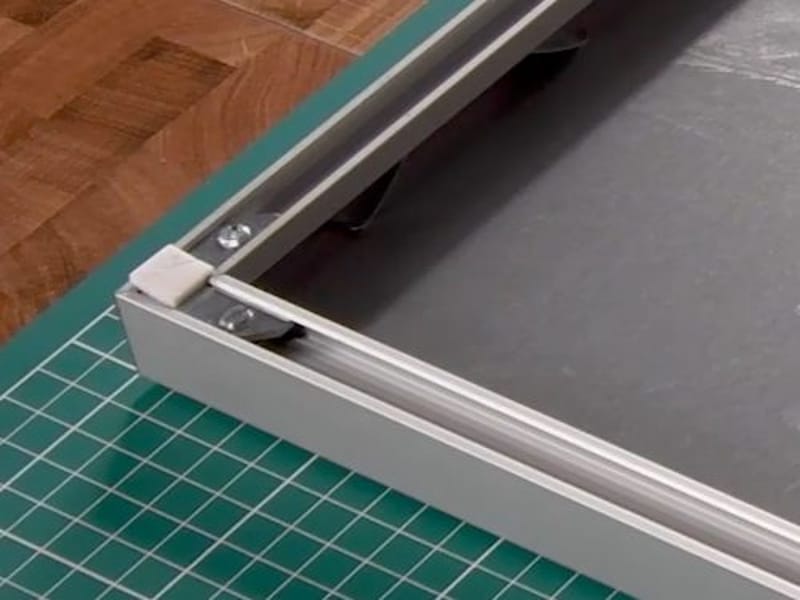

    Finish by sticking bumpers to the bottom corners of the frame. This helps to hang the frame straight and avoid scratching the wall.

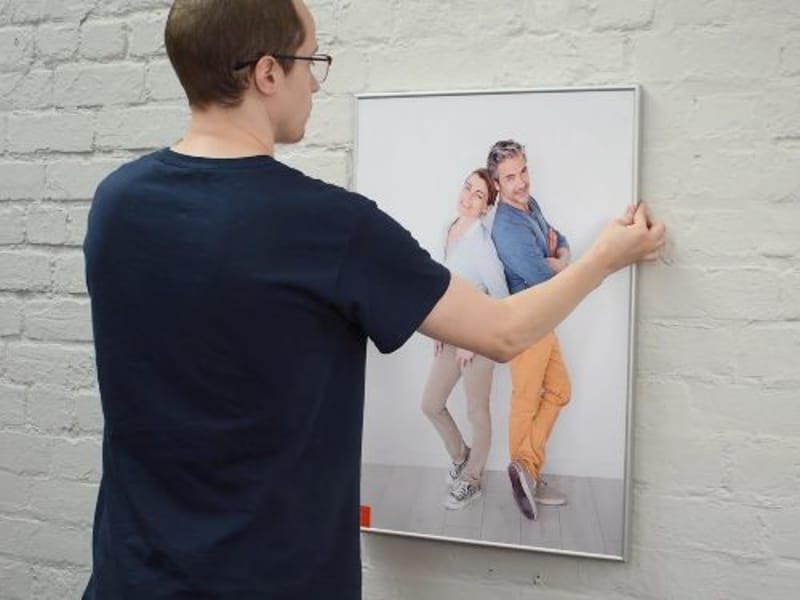

  • Step eight

    Hang directly onto picture hooks. CWH3 Hangers are not designed for use with picture cord or wire.
